Original price was: $57.51.$41.41Current price is: $41.41.
Keyed entry lever best used for security on exterior doors
ADA compliant, ANSI A156.2 Grade 2 Certified, UL Listed R14879

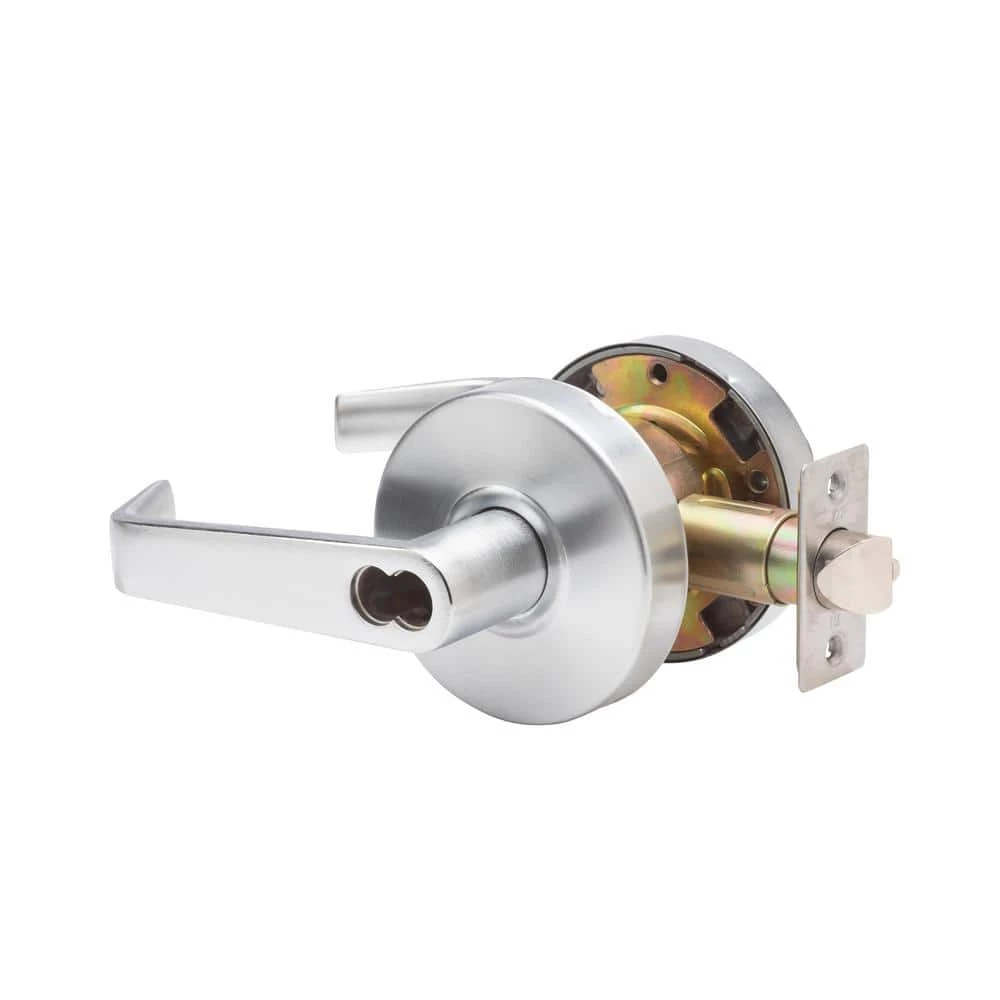

Prepped for small format IC core, but doesn’t include IC Cylinder
- Secure Shopping Starts with Safe Payments
- The home of quality products.
- Streamlined service, designed for your convenience.
- Shop with confidence, enjoy free returns.

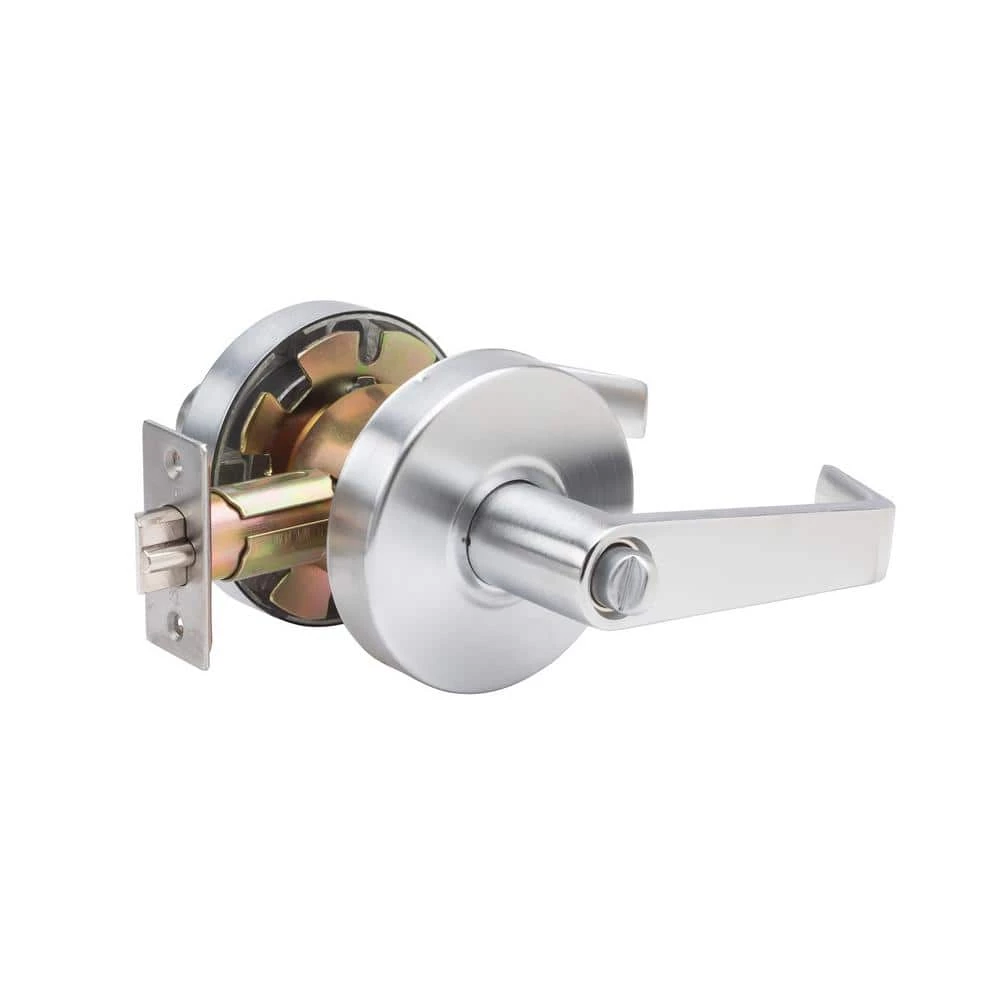

The Trans-Atlantic (Taco) LSV Saturn cylindrical entry leverset comes in a brushed chrome finish and includes an ANSI strike. This entry door handle has a push button on the interior and a key for the exterior side of the lever, allowing you to leave quickly and re-enter easily. This leverset is ADA compliant and exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. The lever is prepared for any small format interchangeable core installation for the entry cylinder, but the cylinder itself is sold separately. It includes all necessary hardware and instructions, resulting in an easy installation process.
- Removable thru-bolts to prevent lock rotation
- Fits doors with 1-3/8 in. to 1-7/8 in. thickness

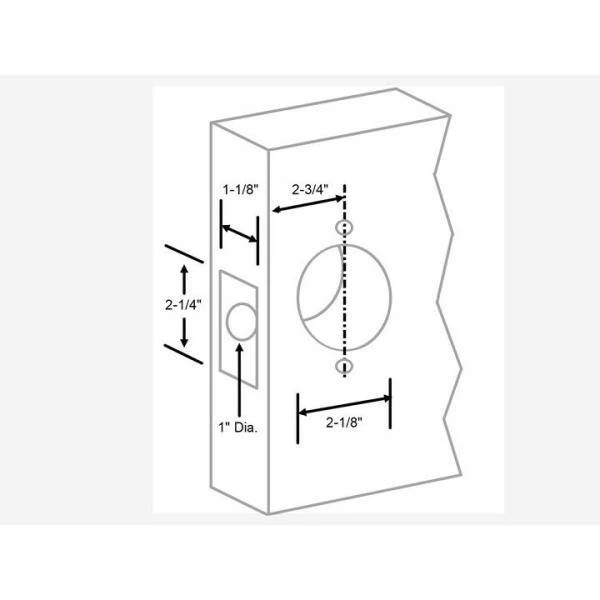

- Backset: 2-3/4 in., latch face: 1-1/8 in. x 2-1/4 in.

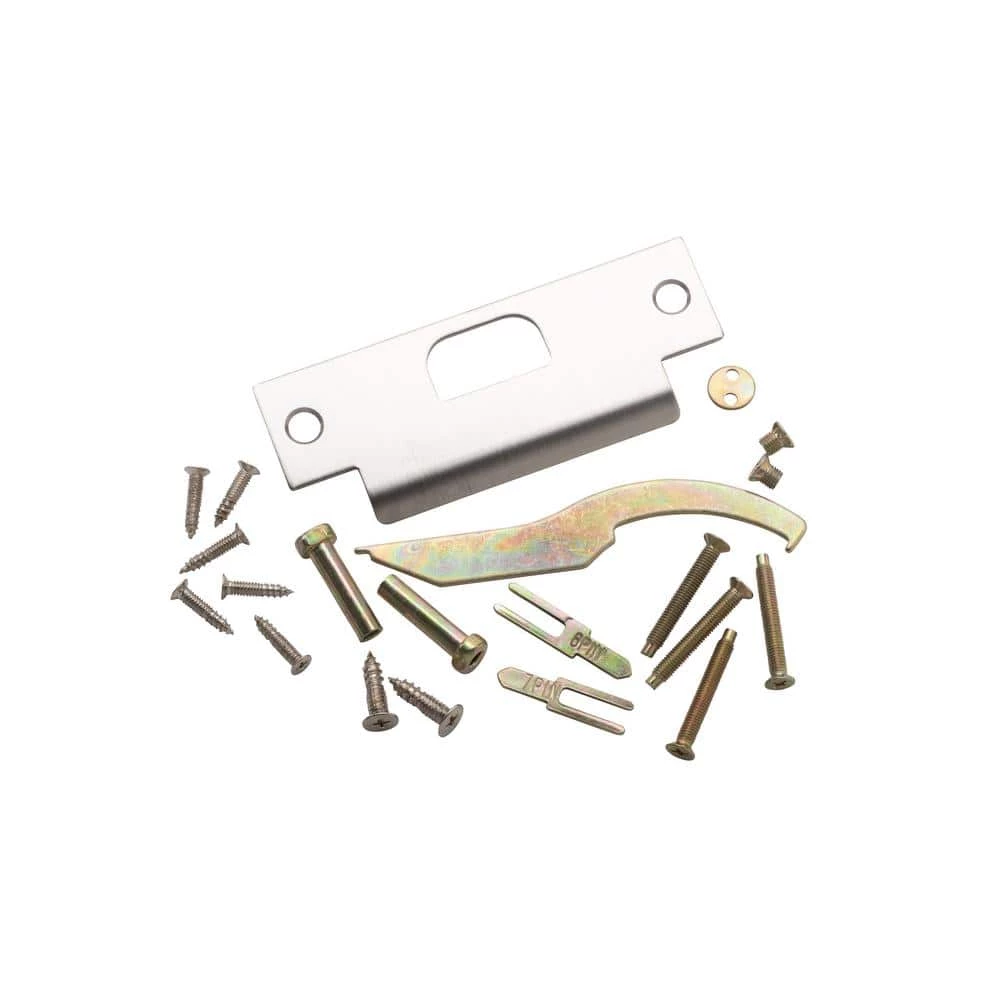

- Includes ANSI Strike, measuring 1-1/4 in. x 4-7/8 in.
- Non-handed/reversible (fits both right and left-handed doors)
- Fits 161 prep doors
- Individual spring on each side prevents lever sag
- Lifetime mechanical warranty
| Application Type | Entry |
|---|---|
| Bore hole diameter (in.) | 2.125 |
| Wired or Wireless | No electrical connectivity |
| Certifications and Listings | ADA Compliant,ANSI Certified,UL Listed |
| Manufacturer Warranty | Lifetime Mechanical |
| Assembled Depth (in.) | 6.25 in |
| Assembled Height (in.) | 3.25 in |
| Assembled Width (in.) | 7 in |
| Backset Size (in.) | 2-3/4 in |
| Cross Bore Diameter (in.) | 2.125 in |
| Strike | Square corner |
| Housing Width (in.) | 2.5 |
| Housing height (in.) | 2.5 |
| Lever Grip Length (in.) | 5 in |
| Maximum Door Thickness (in.) | 1.875 |
| Minimum Door Thickness (in.) | 1.375 |
| Projection (in.) | 3 |
| Strike Height (in.) | 4.875 |
| Strike Width (in.) | 1.25 |
| Total Number of Keys Included | 2 |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Combo Pac | Lockset |
| Hardware Finish Family | Chrome |
| Commercial/Residential | Commercial |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Keyed Levers |
| Electronic/Mechanical | Mechanical |
| Features | Easy Installation |
| Finish | Brushed Chome |
| Hardware Color Family | Chrome |
| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Returnable | 90-Day |
| Interior/Exterior | Exterior,Interior |
| Keyway | C |
| Lever material | Steel |
| Lever style | Straight |
| Lock Type | Keyed |
| Material | Steel |
| Number of Pins | 6 |
| Product Weight (lb.) | 3.2 lb |
| Throw Length (in.) | 0.5 in |
