Original price was: $51.42.$38.57Current price is: $38.57.
Keyed locking lever automatically locks on the outside if closed
ADA compliant, ANSI A156.2 Grade 2 Certified, UL Listed R14879

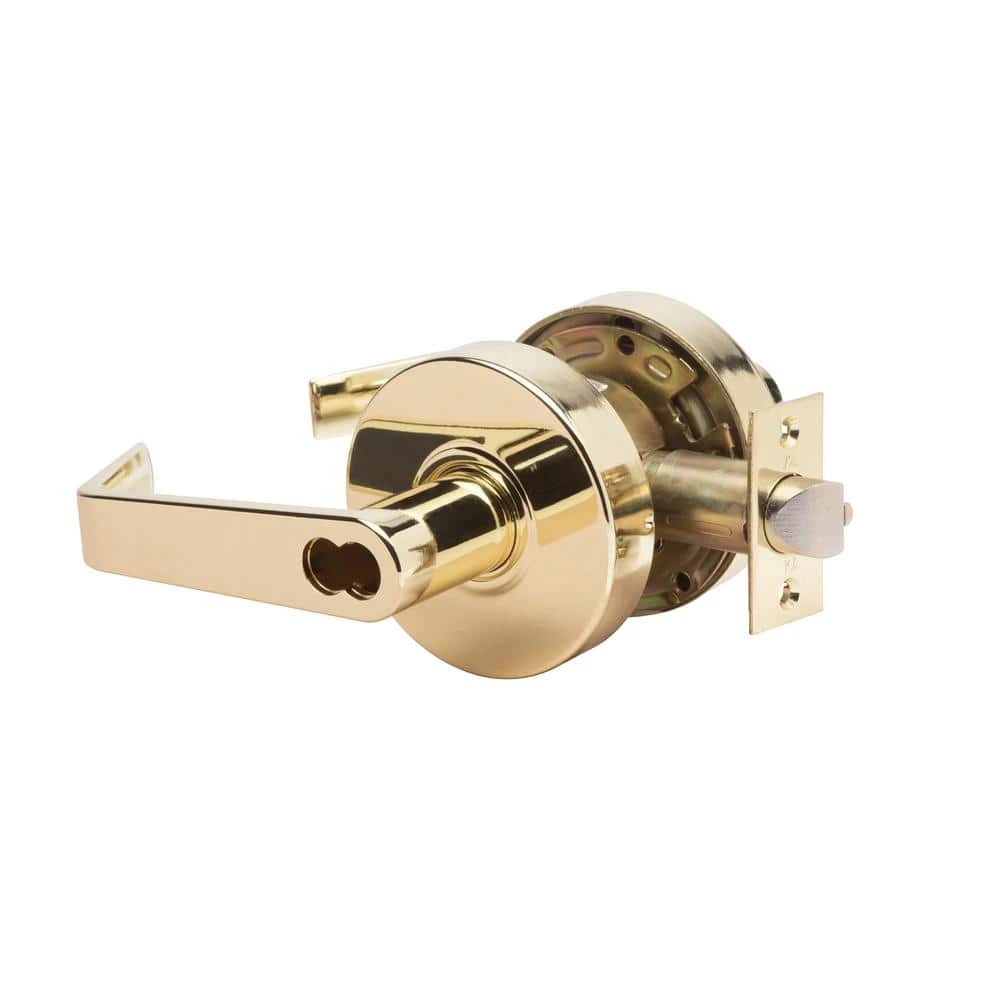

Prepped for small format IC core, but doesn’t include IC Cylinder
- Secure Shopping Starts with Safe Payments
- The home of quality products.
- Streamlined service, designed for your convenience.
- Shop with confidence, enjoy free returns.

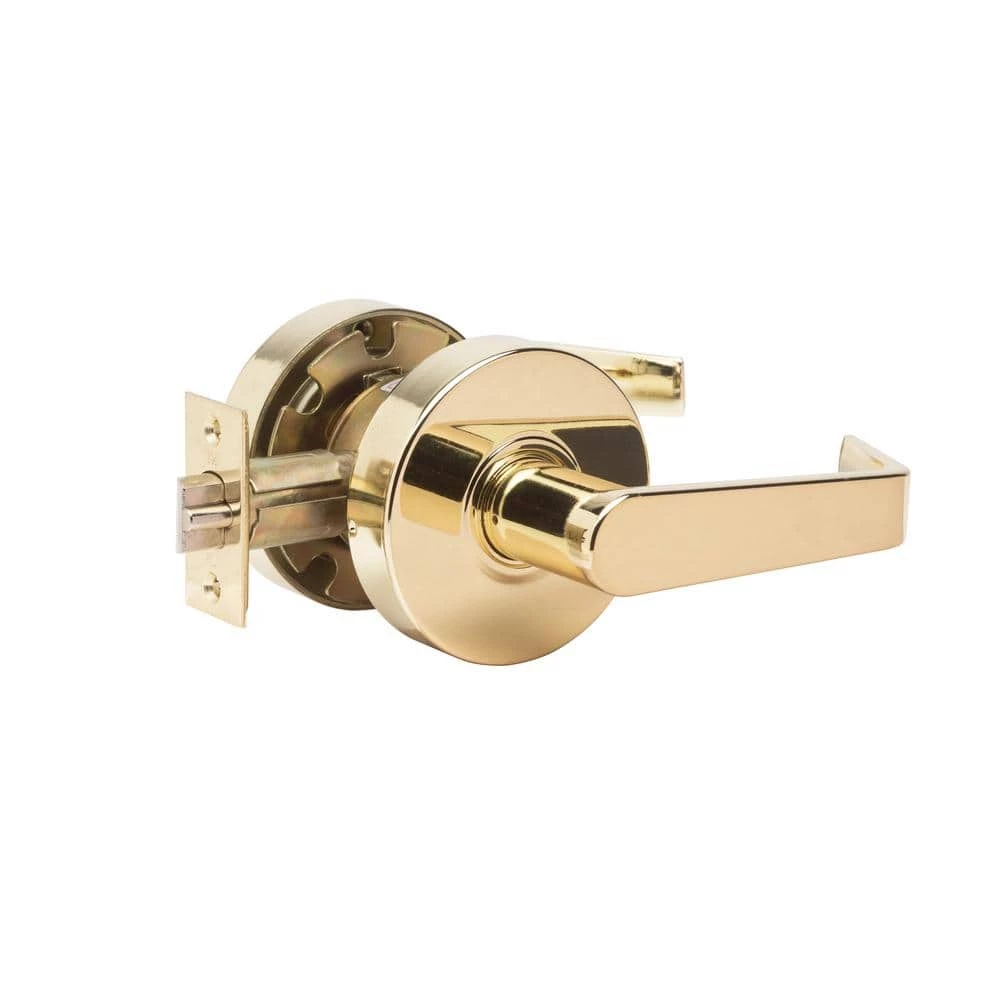

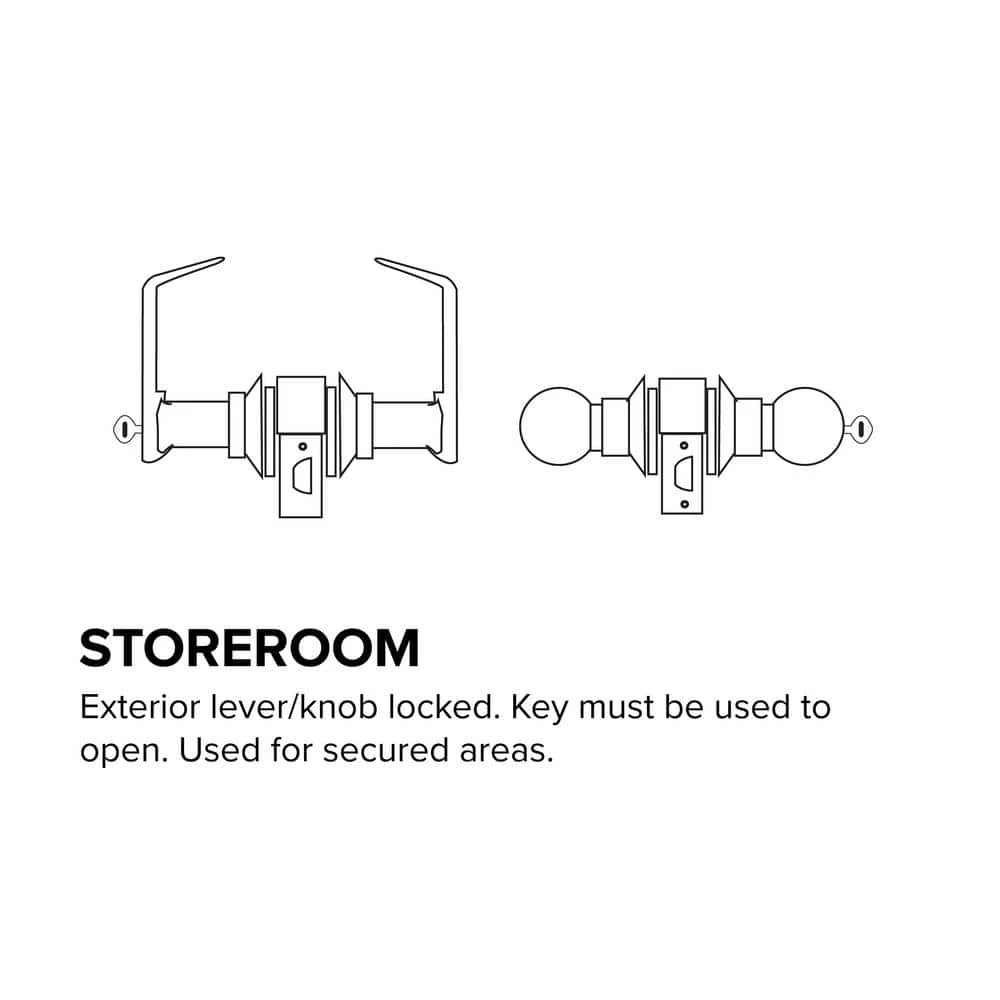

The Trans Atlantic (Taco) LSV Saturn cylindrical storeroom leverset comes in a bright brass finish and includes an ANSI strike. This storeroom door handle always requires a key to open the door from the outside, the inside remains unlocked. This leverset is ADA compliant and exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. The lever is prepared for any small format interchangeable core installation for the storeroom cylinder, but the cylinder itself is sold separately. It includes all necessary hardware and instructions, resulting in an easy installation process.
- Removable thru-bolts to prevent lock rotation
- Non-handed/reversible (fits both right and left-handed doors)

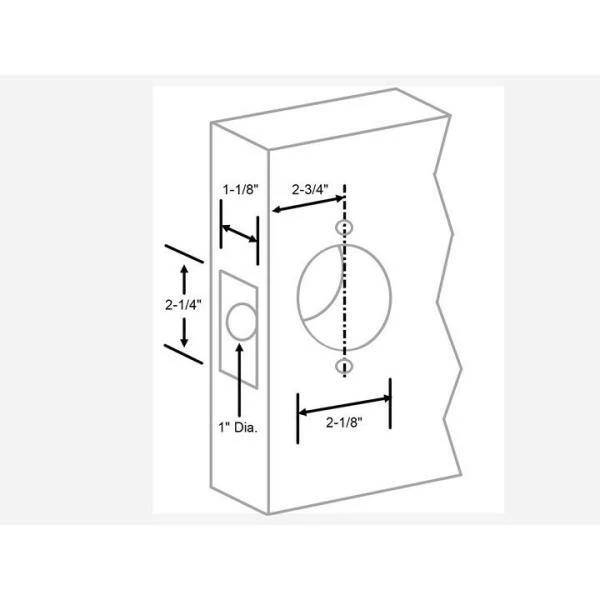

- Backset: 2-3/4 in., latch face: 1-1/8 in. x 2-1/4 in.

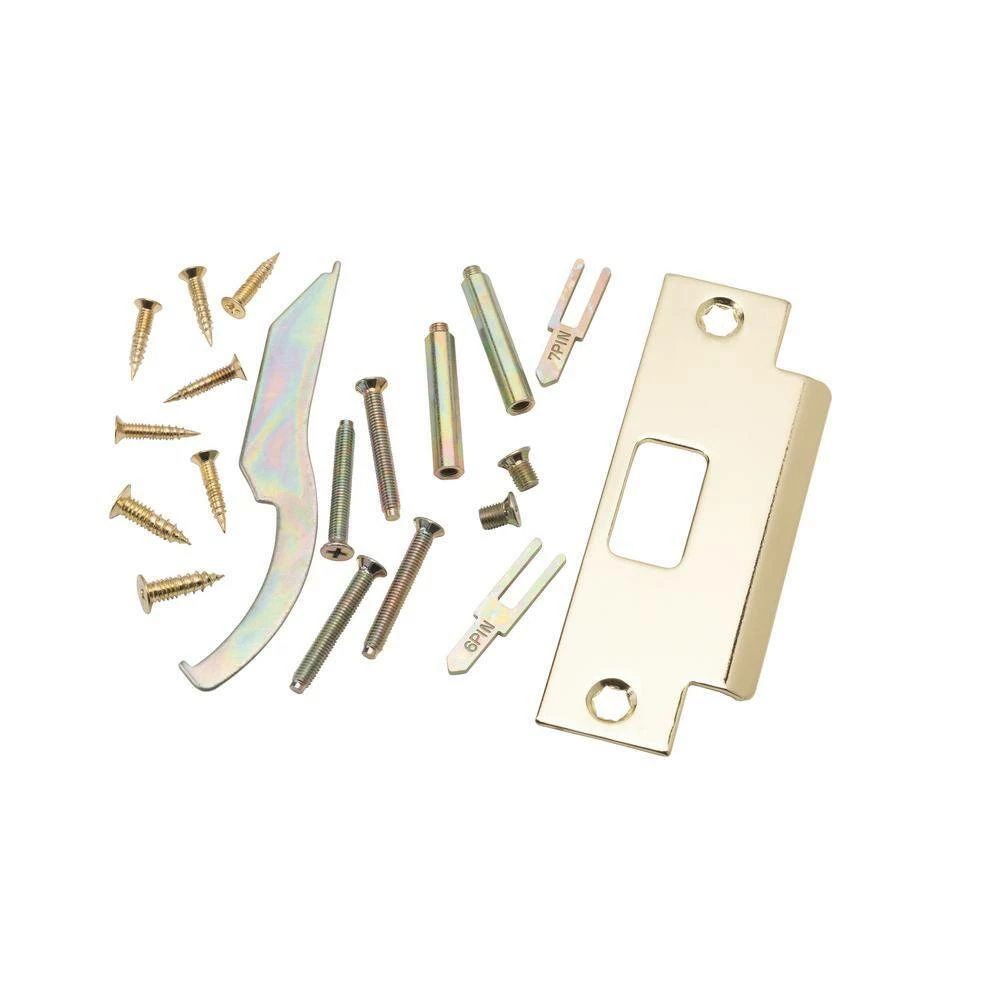

- Includes ANSI Strike, measuring 1-1/4 in. x 4-7/8 in.
- Fits doors with 1-3/8 in. to 1-7/8 in. thickness
- Fits 161 prep doors
- Individual spring on each side prevents lever sag
- Lifetime mechanical warranty
| Application Type | Storeroom |
|---|---|
| Material | Steel |
| Minimum Door Thickness (in.) | 1.375 |
| Maximum Door Thickness (in.) | 1.875 |
| Lever Grip Length (in.) | 5 in |
| Cross Bore Diameter (in.) | 2.125 in |
| Assembled Width (in.) | 6.5 in |
| Assembled Height (in.) | 3.25 in |
| Assembled Depth (in.) | 7 in |
| Manufacturer Warranty | Lifetime Mechanical |
| Certifications and Listings | ADA Compliant,ANSI Certified,UL Listed |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Returnable | 90-Day |
| Product Weight (lb.) | 3.4 lb |
| Lever style | Straight |
| Commercial/Residential | Commercial |
| Lever material | Steel |
| Keyway | C |
| Keying Type | Keyed Different |
| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Hardware Finish Family | Brass |
| Hardware Color Family | Brass |
| Finish | Bright Brass |
| Features | Easy Installation |
| Electronic/Mechanical | Mechanical |
| Door Locks & Knobs Product Type | Storeroom Levers |
| Door Lock Style | Classic |
| Door Handing | Universal |
| Projection (in.) | 3 |
