Original price was: $105.52.$79.14Current price is: $79.14.
Keyed entry lever best used for security on exterior doors
ADA compliant, ANSI A156.2 Grade 1 Certified, UL Listed R14897
Fits doors with 1-3/8” to 2” thickness
- Secure Shopping Starts with Safe Payments
- The home of quality products.
- Streamlined service, designed for your convenience.
- Shop with confidence, enjoy free returns.

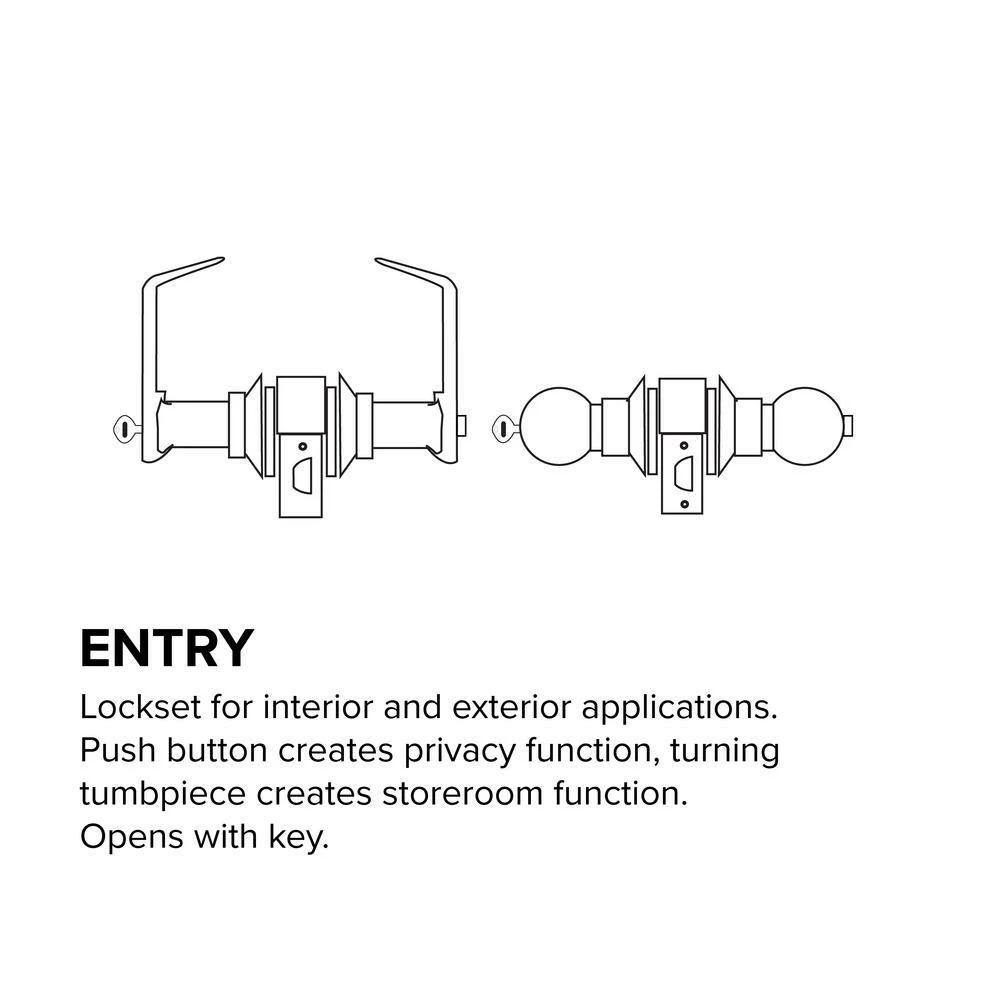

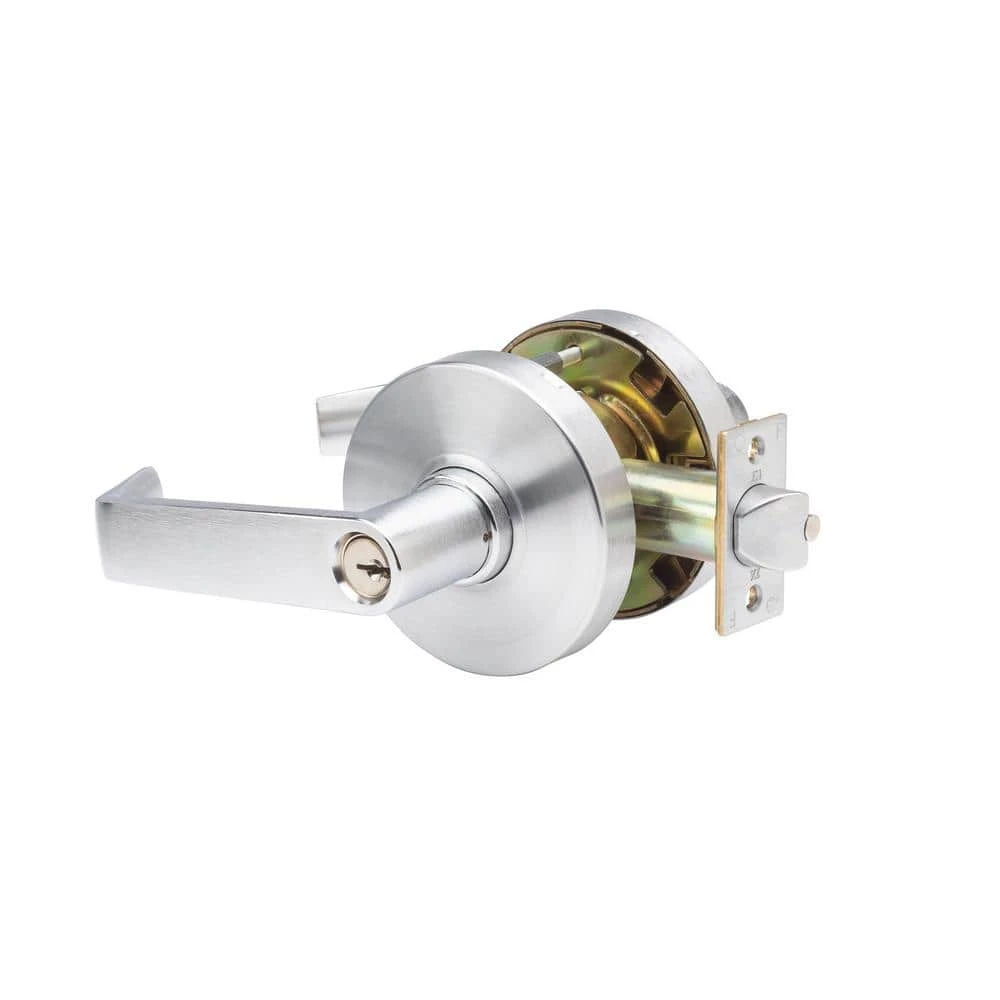

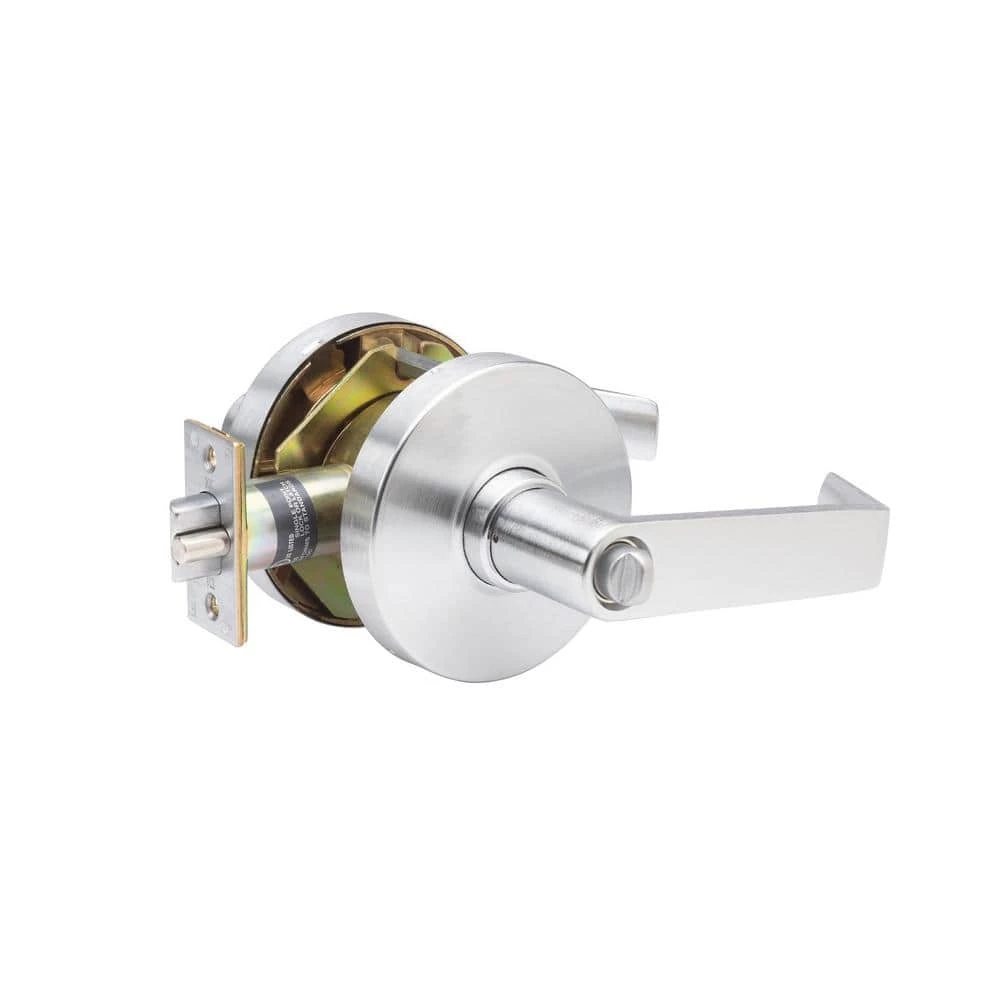

The Trans Atlantic (Taco) LHV cylindrical entry lever set comes in a brushed chrome finish and includes an ANSI strike. This entry door handle has a push button on the interior and a key for the exterior side of the lever, allowing you to leave quickly and re-enter easily. This lever set is ADA compliant and exceeds ANSI standards for Grade 1, making it the perfect fit for commercial, heavy-duty applications.
- Easy installation with hardware included
- Non-handed/reversible (fits both right and left-handed doors)
- Lifetime mechanical warranty

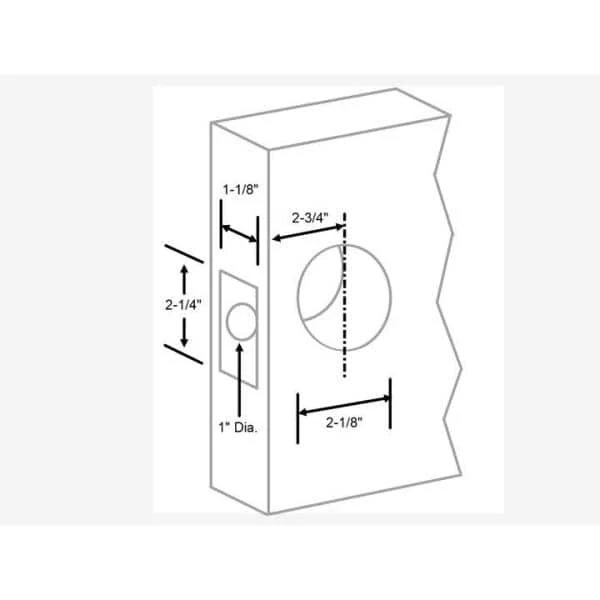

- Backset: 2-3/4 in., latch face: 1-1/8 in. x 2-1/4 in.

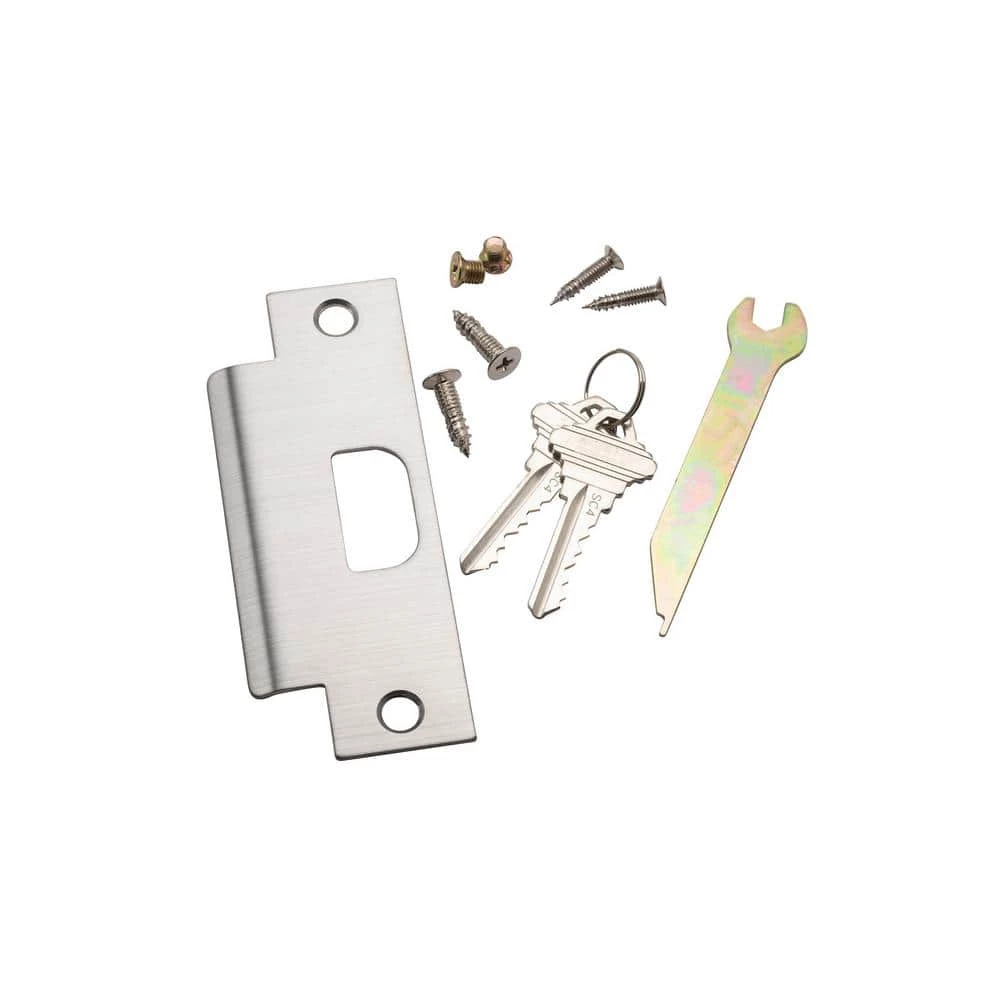

- Includes ANSI Strike, measuring 1-1/4 in. x 4-7/8 in.
- Schlage “C” keyway, includes two 6-pin keys
- Fits 161 prep doors
- Heavy-duty independent spring action mechanism prevents lever sag
| Application Type | Entry |
|---|---|
| Bore hole diameter (in.) | 2.125 |
| Wired or Wireless | No electrical connectivity |
| Certifications and Listings | ADA Compliant,ANSI Certified,UL Listed |
| Manufacturer Warranty | Limited lifetime Mechanical |
| Assembled Depth (in.) | 7.5 in |
| Assembled Height (in.) | 3.50 in |
| Assembled Width (in.) | 6.25 in |
| Backset Size (in.) | 2-3/4 in |
| Cross Bore Diameter (in.) | 2.125 in |
| Strike | Square corner |
| Housing Width (in.) | 2.50 |
| Housing height (in.) | 2.50 |
| Lever Grip Length (in.) | 5 in |
| Maximum Door Thickness (in.) | 2.0 |
| Minimum Door Thickness (in.) | 1.75 |
| Projection (in.) | 3 |
| Strike Height (in.) | 4.875 |
| Strike Width (in.) | 1.25 |
| Total Number of Keys Included | 2 |
| Security/ANSI Grade | ANSI Grade 1 (Best) |
| Combo Pac | Non-Combo |
| Hardware Finish Family | Chrome |
| Commercial/Residential | Commercial |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Keyed Levers |
| Electronic/Mechanical | Mechanical |
| Features | Easy Installation |
| Finish | Brushed Chome |
| Hardware Color Family | Chrome |
| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Returnable | 90-Day |
| Interior/Exterior | Exterior,Interior |
| Keyway | C |
| Lever material | Zinc |
| Lever style | Straight |
| Lock Type | Keyed |
| Material | Steel |
| Number of Pins | 6 |
| Product Weight (lb.) | 3.60 lb |
| Throw Length (in.) | 0.5 in |
