Original price was: $210.51.$99.99Current price is: $99.99.
Lever automatically locks from the outside when closed
ADA compliant and meets a 3 hour UL R15846 fire rating
Features a left-handed sectional door handle
- Secure Shopping Starts with Safe Payments
- The home of quality products.
- Streamlined service, designed for your convenience.
- Shop with confidence, enjoy free returns.
The DXML mortise lockset is designed for heavy-duty commercial and industrial applications. This series meets ADA handicap compliance and meets a 3-hour fire rating. Featuring a specified left-handed or right-handed latch bolt, these mortise locks provide amazing security for any mortise prepped door. This hardware includes an ADA lever along with an ADA approved strike. This lockset comes in a chrome finish to fit in with any industrial or commercial aesthetic.

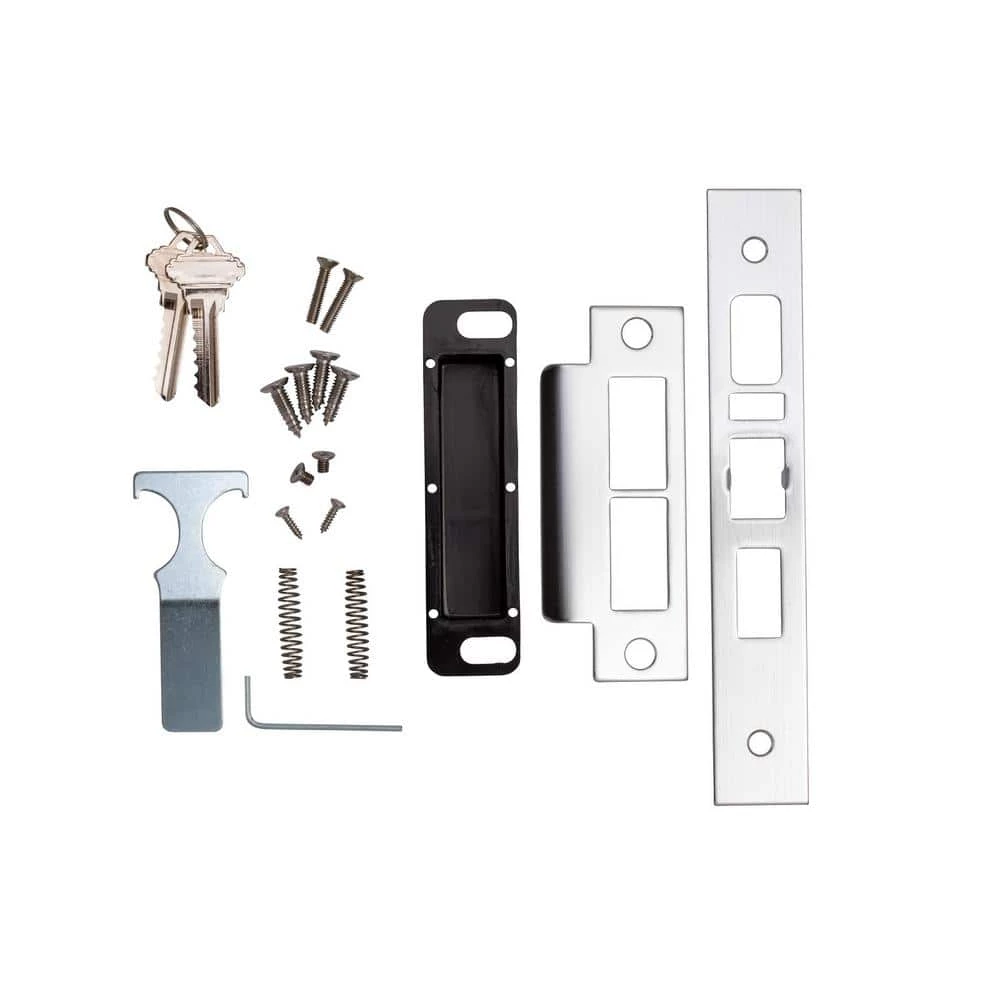

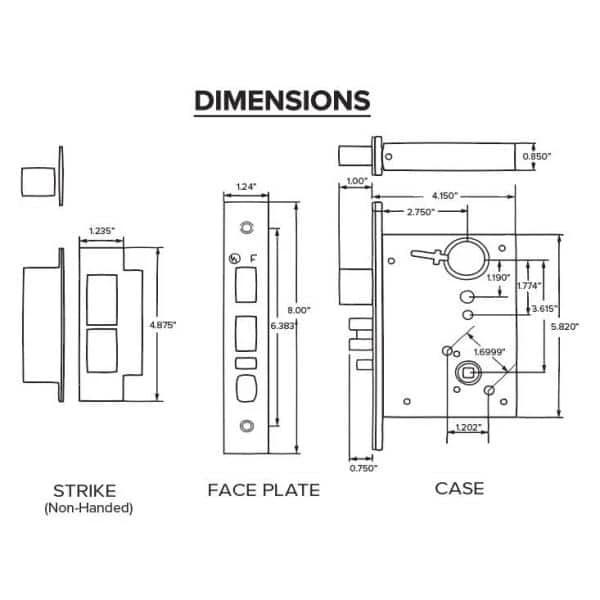

- Includes 1-1/4″ x 8″ faceplate and 2-1/2″ rosette
- Fit for doors 1-3/4″ thick
- Backset measurement is 2-3/4″
- Throw bolt: 1″
- SC6 Schlage “C” 6 pin keyway
- Armored front plate conceals lock mounting screws
- The lever handles are heavy-duty forged brass
- 3 year warranty included
| Application Type | Storeroom |
|---|---|
| Material | Steel |
| Minimum Door Thickness (in.) | 1.75 |
| Maximum Door Thickness (in.) | 3 |
| Lever Grip Length (in.) | 7 in |
| Cross Bore Diameter (in.) | 1.5 in |
| Assembled Width (in.) | 5.5 in |
| Assembled Height (in.) | 8.5 in |
| Assembled Depth (in.) | 3 in |
| Manufacturer Warranty | 3 years limited |
| Certifications and Listings | ADA Compliant,ANSI Certified,BMHA Certified,UL Listed |
| Security/ANSI Grade | ANSI Grade 1 (Best) |
| Returnable | 90-Day |
| Product Weight (lb.) | 7.5 lb |
| Lever style | Straight |
| Commercial/Residential | Commercial |
| Lever material | Steel |
| Keyway | C |
| Keying Type | Keyed Alike |
| Included | Hardware,Installation Instructions |
| Hardware Finish Family | Chrome |
| Hardware Color Family | Chrome |
| Finish | Brushed Chrome |
| Features | Easy Installation |
| Electronic/Mechanical | Mechanical |
| Door Locks & Knobs Product Type | Storeroom Levers |
| Door Lock Style | Classic |
| Door Handing | Left-Handed |
| Projection (in.) | 3 |
